LIGHT INDICATOR FOR PANEL TB/06/SQ
TECHNICAL DATA
Download pdfLamps
incandescent • neon/fluoro • LED red, yellow, orange, green, blue, white
Working voltage
2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V
Working temperature
90°C Max • 120°C Max • 150°C Max
Hole diameter
6mm
Recommended thickness panel
from 0,5mm to 2mm
Method of connection to the panel
Self-locking
Type of connection
PVC Cable • siliconecable • silicone-glass cable
Wire ends
on request
Type of lenses
SQ3 • SQ4 • SQ5 • SQ6 • SQ7

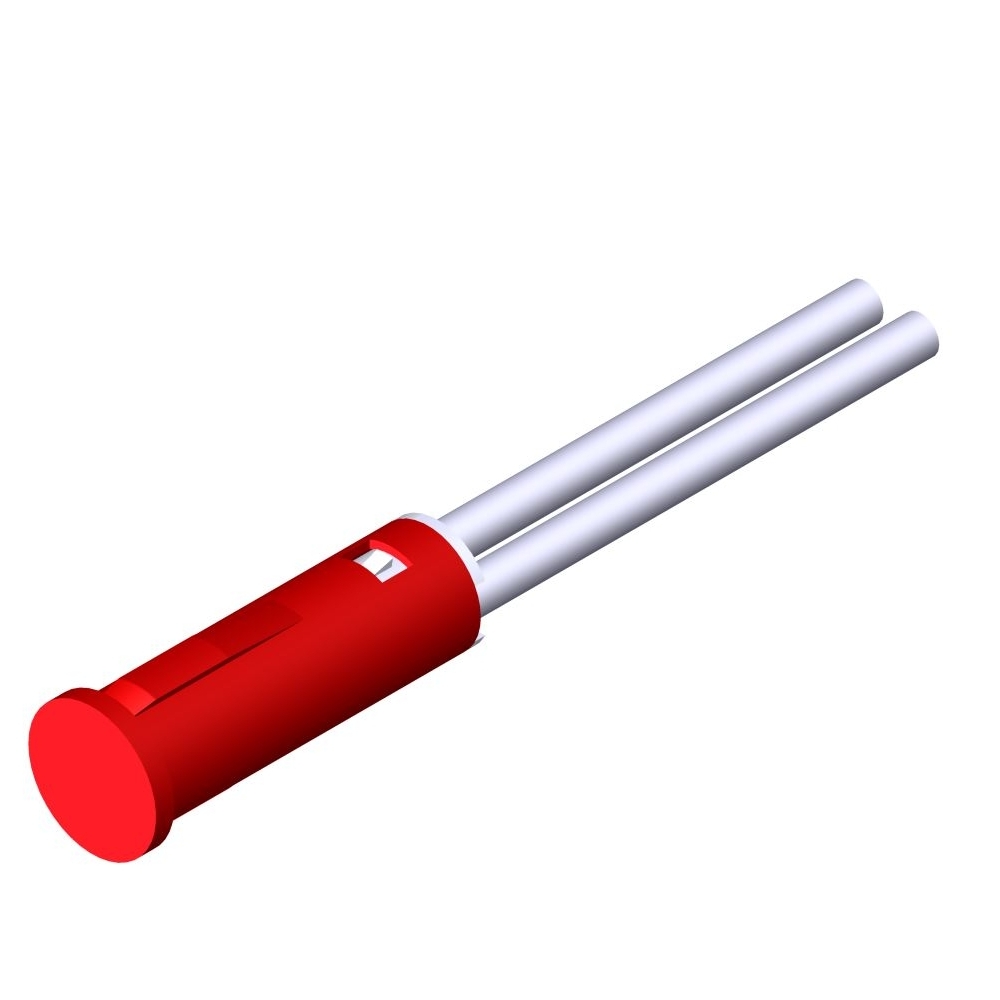

Light indicator for panel TB/06/SQ
Compact, versatile, and easy to install: the TB/06/SQ panel-mount light indicator features a self-locking front panel fitting for 6 mm diameter holes. Available with incandescent, NEON/FLUO, or LED lamps, it supports a wide voltage range from 2V to 400V, making it suitable for multiple applications. Its simple yet robust design makes it ideal for home appliances, Ho.Re.Ca. equipment, HVAC-R systems, lighting, industrial automation, and electrical panels, delivering a reliable and customizable signaling solution for every design need.
